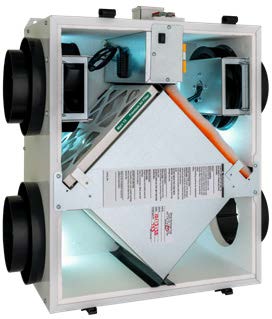

EV PREMIUM PLUS MH - Renewaire Energy Recovery Ventilator - 30-230 CFM

+EV PREMIUM+ MH - RenewAire is a pioneer in enhancing IAQ while maximizing sustainability through enthalpic-core, static-plate Energy Recovery Ventilators (ERVs) that optimize energy efficiency, lower costs by reducing HVAC loads and therefore reduce environmental footprints. Our ERV technology preconditions incoming air with the otherwise-wasted energy (heat and humidity) of the exhaust air going out—all while the airstreams are kept physically separate as certified by the Air Conditioning, Heating and Refrigeration Institute (AHRI) for low-to-zero Exhaust Air Transfer Ratio (EATR) at typical static pressure differentials. As the pioneer of static-plate core technology in North America, RenewAire is the largest ERV producer in the USA. As buildings become more airtight due to better construction methodologies, the need for increased and balanced ventilation is critical. Without it, internally generated contaminants accumulate and cause deficient indoor air quality (IAQ), which leads to significant health and cognitive problems for occupants. Industry standards are changing to combat deficient IAQ, and codes that adopt these new standards are driving the application of Energy Recovery in ventilation strategies. Deficient IAQ is a serious problem, especially considering:

• On average, Americans spend 90% of their time indoors
• The EPA found that indoor air may be 2-5 times—and occasionally greater than 100 times—more polluted than outdoor air The EPA ranks indoor air pollutants as a top-five environmental health risk to occupants

The RenewAire EV Premium+ MH energy recovery ventilator (ERV) is designed for both single and multi-family homes. EV Premium+ S is compliant with 2025 California Energy Commission’s (CEC) Title 24, Part 6 Fault Indicator Display requirements and has an airflow range of 30–230 CFM. In addition to residential applications, the EV Premium+ S ERV is also certified light commercial and could be installed in factory offices and apartment complexes.

Unit features include line-cord power, EC motorized impellers, MERV 13 filter on the outdoor airstream (available as an accessory), constant volume airflow setpoints, independent low and high/boost-mode speeds, filter and fault monitoring/indication. The EV Premium+ MH also has one L-50-G5 core. The core comprises cellulosic-based material and doesn’t contain/use halogenated flame retardants or PVCs.

Available options and accessories include the user-friendly and interactive 4-inch Touchscreen Control+ (TC1+), countdown timer (LVCT), percent timer (LVPT), BACnet Fan Control, RH Electric Duct Heater, MERV 13 filters, and more.

• Application Type: Indoor
• Ventilation Type: Static plate, heat and humidity transfer
• Typical Airflow Range: 30-230 CFM
• AHRI 1060 Certified Core: One L-50-G5 Core
• OA Filter(s): Total Qty: 1, MERV 8: spun polyester media, 10 1/2″ x 10 1/2″ x 1″
• RA Filter(s): Total Qty: 1, MERV 8: spun polyester media, 10 1/2″ x 10 1/2″ x 1″
• Dimensions: 22 1/2″ L x 12 5/8″ W x 23 3/4″ H
• Weight: 36 lbs.

EV PREMIUM+ MH - KEY FEATURES

• White painted cabinet
• Hard Wired power supply
• Low-voltage circuit for controls
• Unit may be mounted in any orientation
• Constant volume airflow setpoints (5 CFM increments)
• Manual balance and airflow adjustments
• Cross-core differential pressure ports
• Dial-A-Flow - balance and airflow adjustment
• Variable speed: 2 speeds: low and high/boost mode
• Switched terminals for: furnace/AC interconnect or auxiliary NO (x1) or NC (x1) outputs, independent low and high-speed activation, damper controls (x2)
• ERV status/fault LEDs: Filter monitoring, replacement, indication, and reset

ACCESSORIES:

• Backdraft damper 6"
• Backdraft damper 8"
• Automatic balancing damper 4"
• Automatic balancing damper 5"
• Automatic balancing damper 6"
• Louvered wall vent 6" - White
• Louvered wall vent 6" - Brown
• Louvered wall vent 8" - Taupe vinyl
• Louvered wall vent with 8" round duct connection: 12" W x 8" H
• Hooded wall vent 8" - Galvanized
• Hooded wall vent 8" - Paintable Galvanneal
• Digital time clock - wall mount (TC7D-W)
• Digital time clock - exterior enclosure (TC7D-E)
• Carbon dioxide sensor/control - wall mount (CO2-W)
• IAQ sensor - wall mount (IAQ-W)
• Motion occupancy sensor/control - ceiling mount (MC-C)
• Motion occupancy sensor/control - wall mount (MC-W)
• Touchscreen Control+ (TC1+), required for unit setup and 2025 CEC Title 24, Part 6 FID compliance and IECC-2024
• Countdown timer control (LVCT)
• Percentage timer control (LVPT)
• MERV 13 filter - OA airstream (shipped loose)
• Electric duct heater - RH series (1-4 kW); designed for indoor ductwork installation only
