AERI MT - Renewaire Energy Recovery Ventilator - 35-255 CFM

Enhance your home’s air quality with the RenewAire Aeri™ MT, the industry’s most innovative and lightweight Energy Recovery Ventilator (ERV). Designed specifically for single and multi-family residential applications, the Aeri™ MT (Model ET-255MF-P340-XC0) combines high-efficiency performance with a contractor-friendly design that cuts installation time in half.

Why Choose the RenewAire Aeri™ MT?

The Aeri™ MT is engineered to provide fresh, filtered outdoor air while exhausting stale indoor pollutants. Unlike standard ventilation systems, this unit recovers heat and humidity from the outgoing air to precondition the incoming air, saving you up to 65% on ventilation-related energy costs.

Standard features include high-efficiency EC motorized impellers and line-cord power supply. The Aeri™ MT utilizes revolutionary Snap-N-Go™ duct collars. These collars allow for the attachment and sealing of flexible ducts at ground level. The unit also features an onboard digital controller with five smart constant volume airflow setpoints. This technology automatically maintains airflow even as system conditions change, eliminating the need for complex balancing.

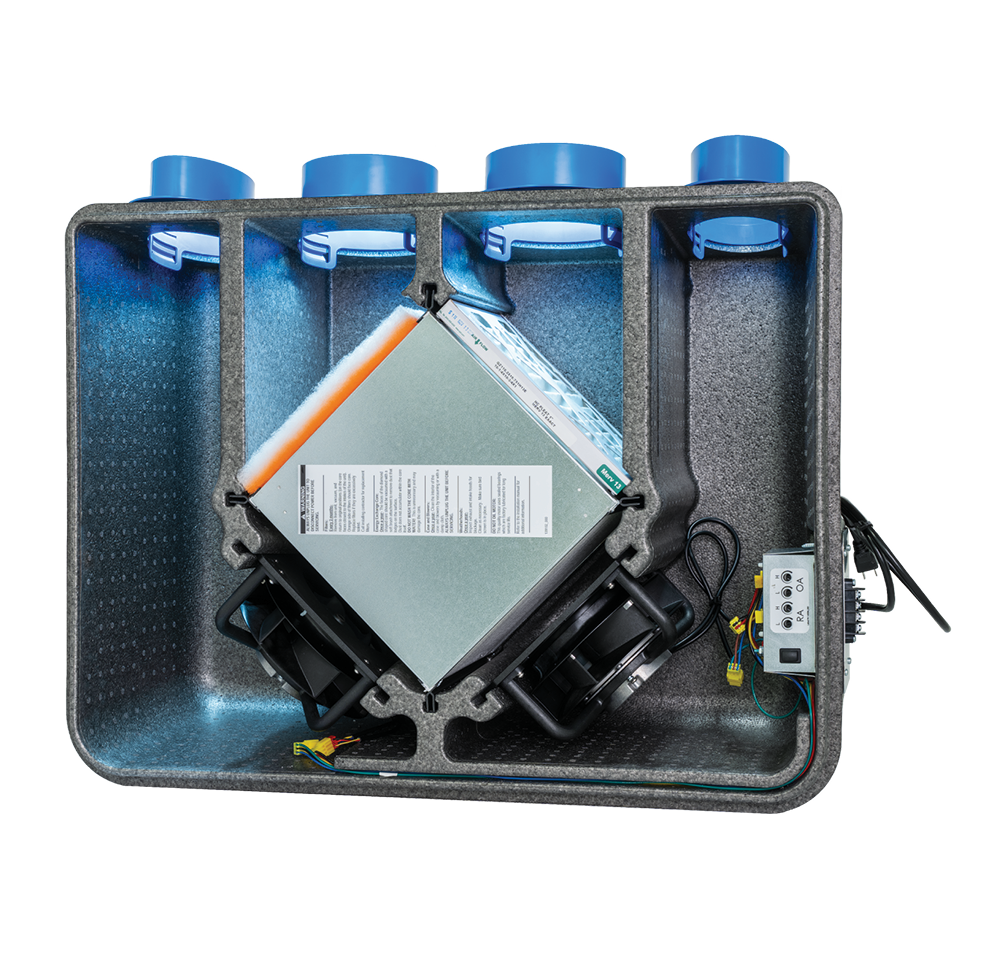

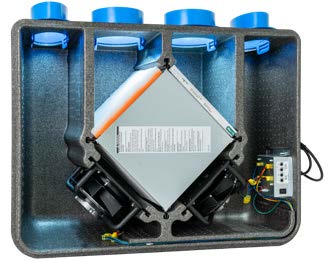

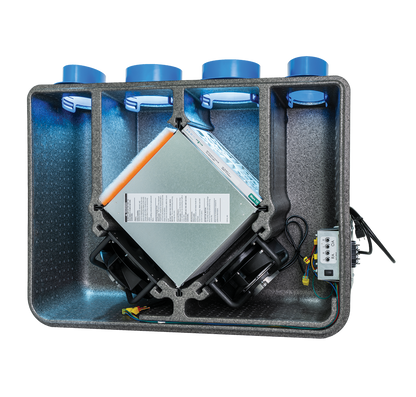

The system utilizes one L-50-G5 static plate core for total energy recovery. This cellulosic-based core contains no PVCs or halogenated flame retardants. The unit is HVI Tested and Certified per the CSA C439 protocol to ensure industry-leading performance data. It also carries a cULus listing and meets NFPA 90A standards. Because the unit requires no condensate drain, it allows for flexible mounting in various indoor orientations.

AERI MT - KEY FEATURES

• Model Code: ET-255MF-P340-XC0
• Ultra-Lightweight Design: Weighing only 25 lbs, the durable EPP (Expanded Polypropylene) foam cabinet is easy to handle and can be mounted on walls, ceilings, or floors.
• Snap-N-Go™ Technology: Features proprietary duct collars that allow you to seal flexible ducts at ground level and simply "snap" them into the unit—no more struggling with screws on a ladder.
• Smart Constant Volume Airflow: Equipped with five smart setpoints (35, 70, 110, 150, and 190 CFM). The EC motorized impellers automatically adjust to maintain your selected airflow, even as filters clog or system pressures change
• Superior Filtration: Comes standard with MERV 8 filters, with an optional MERV 13 upgrade for the outdoor airstream to remove even finer contaminants.
• No Drain Required: The static-plate core transfers moisture effectively, eliminating the need for a condensate drain and providing total mounting flexibility.
• Industry-Leading Warranty: Includes a 10-year warranty on the static-plate core and a 5-year warranty on the unit.
• Application Type: Indoor
• OA Filter(s): Total Qty: 1, Merv 8: spun polyester media, 10 1/2″ x 10 1/2″ x 1″
• RA Filter(s): Total Qty: 1, Merv 8: spun polyester media, 10 1/2″ x 10 1/2″ x 1″

AERI MT SPECIFICATIONS:

• Airflow Range: 35 – 255 CFM
• Voltage: 120V (Line-cord power supply included)
• Dimensions: 32 5/8" W x 26 1/2" H x 13 3/4" D
• Certifications: HVI Tested/Certified, cULus Listed, meets NFPA 90A standards.

ACCESSORIES:

• Backdraft damper 6"
• Backdraft damper 8"
• Automatic balancing damper 4"
• Automatic balancing damper 5"
• Automatic balancing damper 6"
• Louvered wall vent 6" - White
• Louvered wall vent 6" - Brown
• Louvered wall vent 8" - Taupe vinyl
• Louvered wall vent with 8" round duct connection: 12" W x 8" H
• Hooded wall vent 8" - Galvanized
• Hooded wall vent 8" - Paintable Galvanneal
• Digital time clock - wall mount (TC7D-W)
• Digital time clock - exterior enclosure (TC7D-E)
• Carbon dioxide sensor/control - wall mount (CO2-W)
• IAQ sensor - wall mount (IAQ-W)
• Motion occupancy sensor/control - ceiling mount (MC-C)
• Motion occupancy sensor/control - wall mount (MC-W)
• Push-button boost timer (PBT)
• Percentage timer control (PTL)
• Percentage timer control with furnace interlock (FM)
• Push-button point-of-use controls (PBL), PTL req’d.
• MERV 13 filter - OA airstream (shipped loose)
• Electric duct heater - RH series (1-8 kW); designed for indoor ductwork installation only
