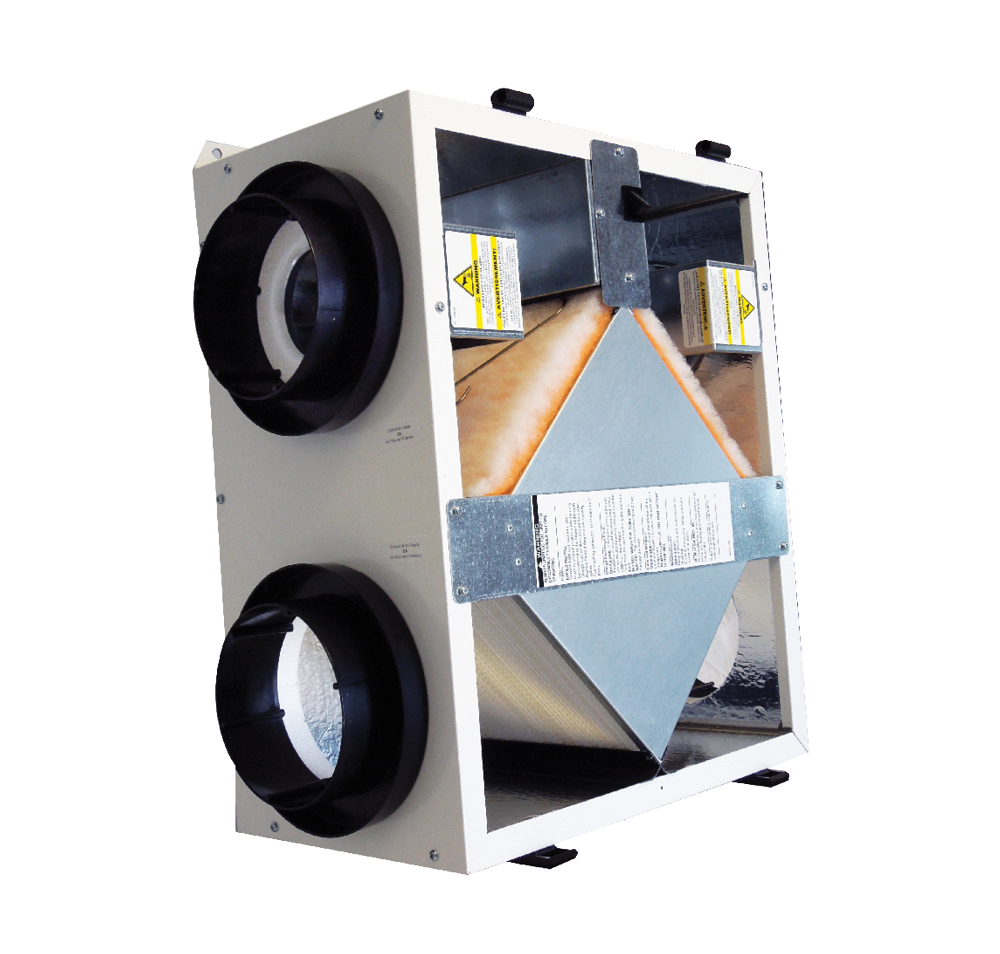

EV90 - Renewaire Energy Recovery Ventilator - 40-110 CFM

Renewaire EV90 is a popular residential ERV in the market. The Renewaire EV90 is ideal for homes up to 2,000 sqft. It comes with a 10 year warranty on the Energy Exchange Core. The warranty on all the other components is 2 years. The only maintenance required on the unit is to replace the filters every month. Filters are very easy to replace, just open the unit, pull them out and replace them with new ones. This ensures that your unit will operate at its peak performance and trouble free. The unit is very quiet and consumes less than 1 watt standby power consumption. Installation is easy since there is no water condensate line in the unit to worry about. The reason is because Renewaire's patented energy recovery core lets temperature and humidity to transfer from one airstream to the other. You can mount the unit in any configuration imaginable; there are no restrictions. EV90 - Overview

• Typical Airflow Range: 40-110 cfm
• Unit is HVI Tested/Certified per CSA C439 Protocol: Using one L-35-G5 Core
• Optimally sized for the small residential home, apartment or condominium (up to 2000 sq. ft.)
• Standard Features:
  • White painted cabinet
  • Line-cord power supply (115V / 60 Hz)
  • Low-voltage circuit for controls
  • Unit may be mounted in any orientation
  • Cross-core differential pressure ports
• Control: Onboard 24VAC transformer/relay package
• In new construction or remodel situations - replace common bathroom fans with RenewAire residential ERVs - 100% exhaust air to fresh air separation

• Dimensions: 2 1/2″ L x 11 5/8″ W x 23 3/4″ H
• Weight: 36lbs

EV90 - Accessories

• Backdraft damper: 6", 8"
• Automatic balancing damper: 4", 5", 6"
• Motorized Dampers: 6", 8"
• Concentric Vent: 6" (CV6-110)
• Louvered wall vent 6": white, brown
• Digital time clock: wall mount (TC7D-W), in exterior enclosure (TC7D-E)
• Carbon dioxide sensor/control: wall mount (CO2-W), duct mount (CO2-D)
• IAQ sensor: wall mount (IAQ-W), duct mount (IAQ-D)
• Motion occupancy sensor/control: ceiling mount (MC-C), wall mount (MC-W)
• Percentage timer control (PTL)
• Push-button point-of-use controls (PBL), [PTL required]
• Percentage timer control with furnace interlock (FM)
