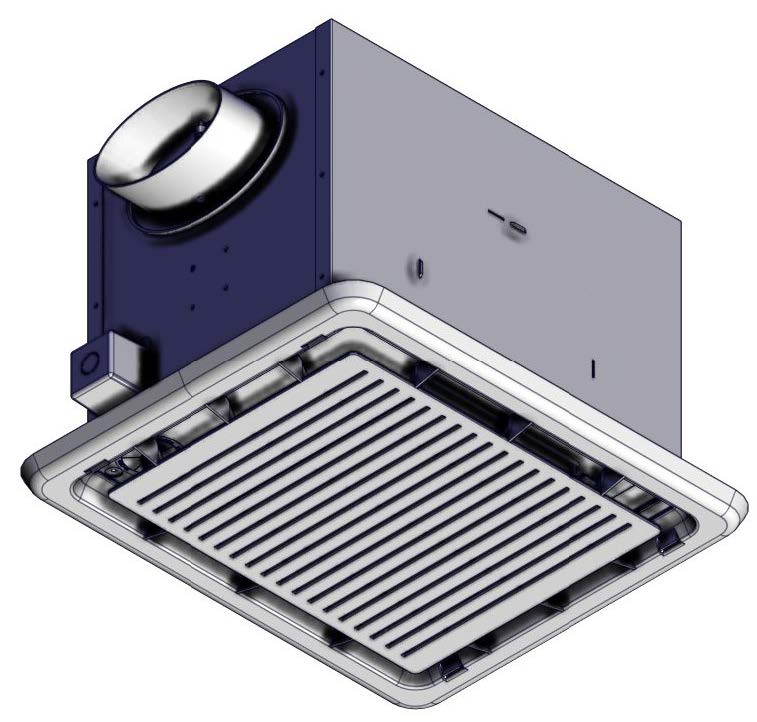

EVERGREEN SH - Renewaire Energy Recovery Ventilator - 25-130 CFM

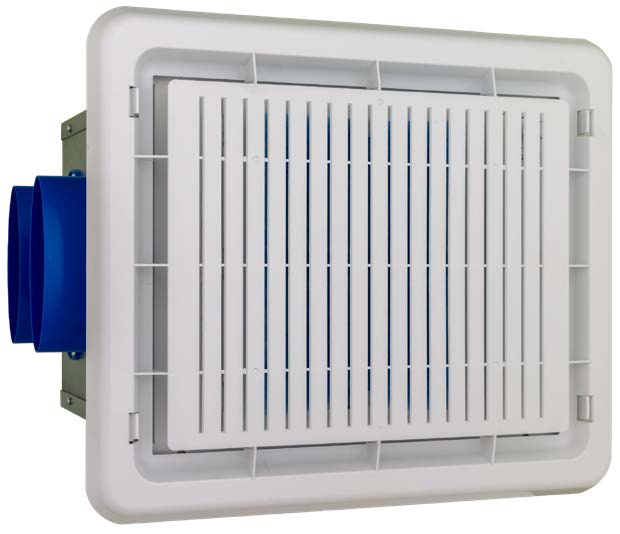

RenewAire® Evergreen™ SH Energy Recovery Ventilator (ERV)

Big Clean Air. Small Footprint.

Don’t let its compact size fool you—the Evergreen™ SH delivers powerful, whole-home ventilation without sacrificing valuable space. Designed specifically for apartments, condos, and single-point exhaust areas (like laundry rooms or bathrooms), this three-duct residential ERV fits seamlessly into standard ceiling joists and cavities.

By exhausting stale, humid air and replacing it with fresh, tempered outdoor air, the Evergreen™ SH keeps your indoor climate healthy, comfortable, and odor-free.

Why Choose the Evergreen™ SH?

·         Ultra-Low Profile: Easily tucks away into ceiling cavities, making it the ultimate space-saving ventilation solution.

·         Eco-Friendly Core Technology: Features a premium static-plate core that transfers heat and moisture efficiently with zero cross-contamination between air streams. Plus, it’s 100% free of PVCs and harmful flame retardants.

·         Customizable Airflow: Operates between 25–130 CFM to perfectly match your home's ventilation needs.

·         Upgradable Filtration: Comes standard with MERV 7 filters, with an outside air slot ready to upgrade to a medical-grade MERV 13 filter for maximum allergen protection.

·         Flawless Finish: Includes an integrated return grille designed to perfectly cover any drywall gaps for a clean, flush install.

Key Specifications:

·         Airflow Capacity: 25–130 CFM

·         Motor Type: High-efficiency, backward-curved EC motorized impellers

·         Control Flexibility: Works seamlessly with standard 120V accessories (light switches, timers, etc.)

Application Type: Indoor

Ventilation Type: Static plate, heat and humidity transfer

Typical Airflow Range: 25-130 CFM

AHRI 1060 Certified Core: One L-07-G5

Standard OA Filter(s): Total Qty: 1, MERV 7: spun polyester media, 7 3/8″ x 10 1/8″ x 3/8″

Standard RA Filter(s): Total Qty: 1, MERV 7: spun polyester media, 7 3/8″ x 10 1/8″ x 3/8″

Dimensions: 17″ L x 11 7/8″ W x 11 3/4″ H

Weight: 17 lbs.

Accessories:

• Duct collar with backdraft damper (SA and/or EA)
• Concentric Vent: 6" (CV6-110)
• Louvered wall vent 6": white, brown
• Louvered wall vent 8": taupe vinyl, galvanized, paintable galvanneal
• Louvered wall vent with 8" round duct connection: 12" W x 8" H
• Hooded wall vent 8": galvanized, paintable galvanneal
• MERV 13 filter: OA airstream (shipped loose)
• Electric duct heater: RH series (1–4 kW); designed for indoor ductwork installation only
• Countdown timer control (SVCT): 120V AC
• Percent timer control (SVPT): 120V AC
