• RHD5208-8 - 5KW/208V HEATER

Renewaire

RHD5208-8 - 8"/5KW/208V HEATER

RHD5208-8 - 8"/5KW/208V HEATER

$840.00 USD
$840.00 USD
Submittal
IOM Manual
Brochure

Description

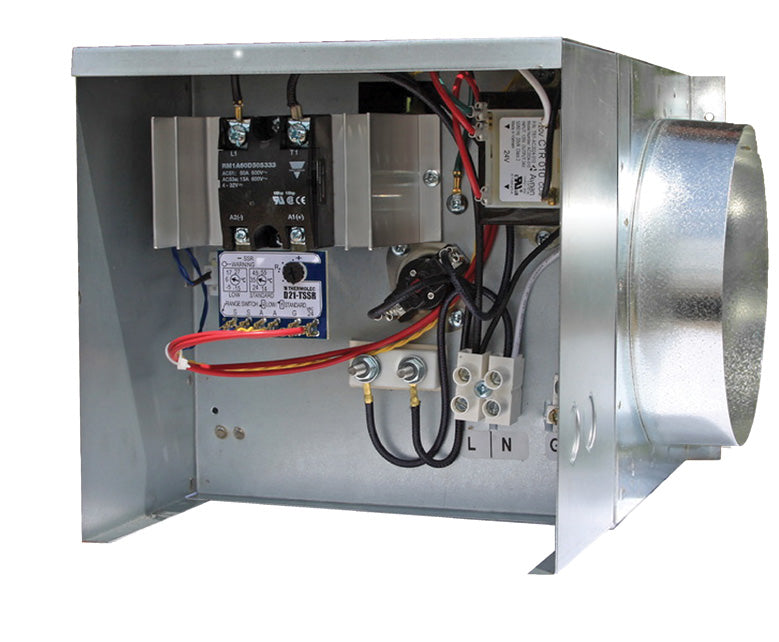

RHD5208-8 - 8"/5KW/208V HEATER

RHD5208-8 8" Round Electric Heater Integral Mount 5kW 208V, 1P Specifications:

  • Heater Type:Electric Duct Heater
  • kW Range: 5kW
  • Voltages & Phase: 208V
  • Control Voltage: 24VAC
  • Controllable Output Temperature Range: RH-D: 5 to 131˚ F RH-W: -3 to 130˚ F

Standard Features:

  • Open-coil element
  • High-grade, nickel-chrome element wire
  • Thermostat: Integral (RH-D), Wall mount (RH-W)
  • Modulating heat output (SCR control)
  • Vertical or horizontal operation
  • Automatic limit switch for primary over-temperature protection
  • Manual reset limit switch for secondary over-temperature protection
  • Airflow sensor
  • Standard control transformer: 24VAC
  • Corrosion-resistant galvanized steel
  • Round duct collars
  • High-voltage terminal block connections
  • Grounding lug
  • Mounting flanges
  • Note: Electric duct heater designed for indoor ductwork installation only
RH_Duct-Heater_138307_005_OCT20Submittal-RH-ELECTRIC-DUCT-HEATER-Dec2023LIT_069_03_Electric_Duct_Heater_web

Does it come with a warranty?

All RenewAire ERVs come with an industry-leading 10-year structural and performance warranty for the static-plate core. In addition to the core warranty, all commercial products have a two-year warranty.

How fast is shipping?

The HE07 units are made to order. Lead time varies depending on the current order volume. Please contact us for most up to date lead times.

What's the returns policy?

HE07 units are made to order and are therefore cannot be returned once it ships from the factory.
